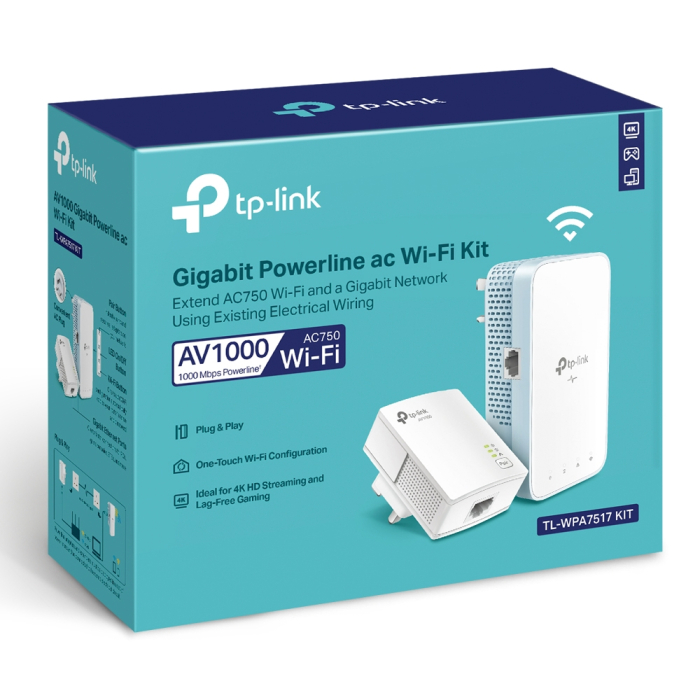

TP-Link - TL-WPA7517 KIT（套裝） AV1000高速電力綫網路橋接器 帶 AC750雙頻WiFi PowetLine PLC HomePlug

硬體規格
插頭類型 EU
標準與協定 HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u,
IEEE 802.3ab, IEEE 802.11b/g/n (2.4GHz), IEEE 802.11a/n/ac (5GHz)
連接介面 TL-WPA7517: 1 Ethernet Port
TL-PA7017: 1 Ethernet Port
按鈕 Pair, Reset, Wi-Fi Clone, LED On/Off
功耗 TL-WPA7517: Maximum: 11W, Typical: 6.5W
TL-PA7017: Maximum: 2.9W, Typical: 2.6W
LED指示燈 Power, Powerline, Ethernet, Wi-Fi (2.4GHz), Wi-Fi (5GHz)
尺寸大小(長 x 寬 x 高) TL-WPA7517: 2.7 × 1.4 × 4.9 in. (69.5 × 35 × 124.1 mm)
TL-PA7017: 2.0 × 1.1 × 2.6 in. (52 × 28.5 × 65 mm)
範圍 Up to 300 meters/1000 feet over existing electrical wiring
相容性 Compatible with all HomePlug AV & AV2 standard powerline adapters
傳輸速度 Powerline: Up to 1000 Mbps
Ethernet: 10/100/1000 Mbps
無線網路規格
無線網路安全性 WPA-PSK / WPA2-PSK, WEP Encrptions
軟體規格
管理 tpPLC: Scan the QR code to download TP-Link tpPLC App.
Or download new tpPLC Utility on PCs: www.tp-link.com.
調製技術 OFDM (PLC)
加密 Powerline: 128-bit AES Encryption
Wireless: WPA-PSK / WPA2-PSK, WEP Encrptions
軟體
OneMesh™ OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products>
其他規格
認證 CE, RoHS
包裝內容 AV1000 Powerline Wi-Fi Kit: TL-WPA7517 & TL-PA7017
Ethernet Cable × 2
Quick Installation Guide
系統需求 Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux
環境 Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% non-condensing
